Axis count is not a quality badge — it is a motion capability. Here is what it changes, what it doesn’t, and when the expensive machine is actually the cheaper choice.

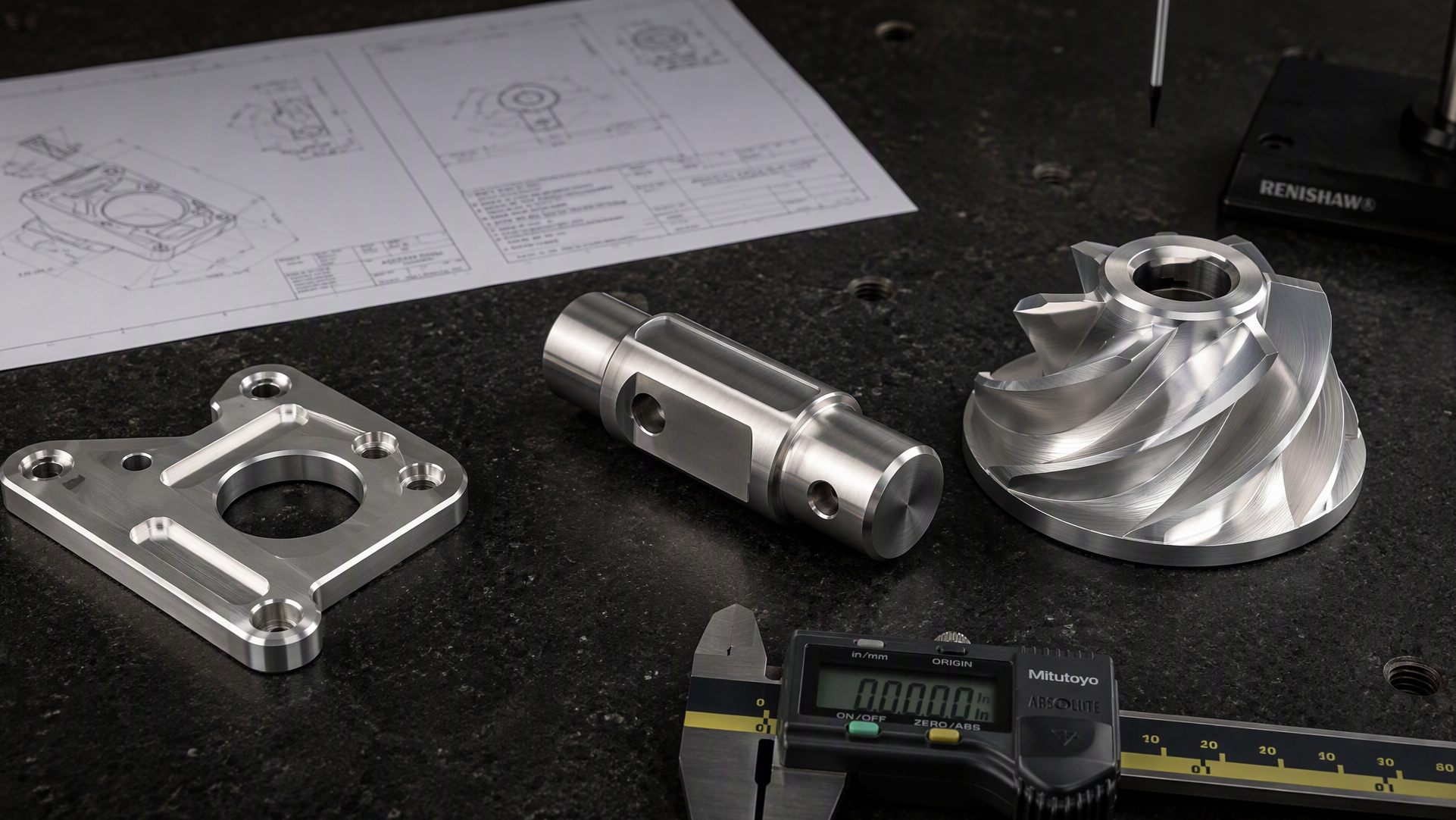

From a flat bracket to a helical shaft to a twisted impeller: complexity decides the axis count.

“Should this part be made on a 3-axis or a 5-axis machine?” is one of the most common questions in CNC machining — and one of the most commonly answered wrong.

The axis count is not a quality badge; it is a motion capability. More axes mean the cutter can reach the workpiece from more directions with fewer re-clampings — which changes accuracy, surface finish, cycle time, and cost in specific, predictable ways. This guide explains exactly what 3-, 4-, and 5-axis machines do differently, the accuracy each can realistically hold, where each is applied, and the precautions that keep buyers from paying 5-axis prices for 3-axis parts (or the reverse).

1. What the Axis Count Actually Means

Every CNC mill moves along three linear axes: X (left-right), Y (front-back), Z (up-down). That’s a 3-axis machine — the industry workhorse, responsible for roughly 65–70% of all CNC machining.

• 4-axis adds one rotary axis (usually A, rotating around X): the workpiece can spin like a lathe chuck while the mill cuts — ideal for machining features around cylinders.
• 5-axis adds a second rotary axis (A+B or A+C): the tool or the workpiece can tilt and rotate, so the cutter can approach from virtually any direction — often in a single setup.

One critical subdivision hides inside the word “5-axis”:

• 3+2 (positional) machining — the rotary axes tilt the part to an angle, lock, and then ordinary 3-axis cutting happens. Rigid, simpler to program, and delivers roughly 90% of 5-axis benefits at about 50% of the complexity — perfect for flat faces presented at angles.
• Simultaneous 5-axis — all five axes interpolate continuously during the cut, following sculpted surfaces like impeller blades. This is the expensive, powerful mode that true free-form geometry requires.

2. The Three Configurations Side by Side

Factor	3-Axis	4-Axis	5-Axis (3+2 / simultaneous)
Motion	X, Y, Z linear	X, Y, Z + 1 rotary (A)	X, Y, Z + 2 rotary (A/B or A/C)
Faces reachable per setup	1–3	Multiple, around a rotation axis	Up to 5 (often the whole part in one setup)
Undercuts / compound angles	Not possible	Limited	Yes
Continuous sculpted surfaces	No	Helical / cylindrical only	Yes (simultaneous mode)
Typical setups for a complex part	3–5 re-clampings	1–3	1 (sometimes 2)
Achievable tolerance	±0.05–0.25 mm (setup stack-up dependent)	±0.025–0.1 mm	±0.025–0.075 mm; feature-to-feature relationships excellent in one setup
Surface finish	Good on accessible faces	Good on cylindrical features	Superior on contours — tool stays at optimal angle
Programming	Standard CAM	CAM with rotary support	Advanced CAM (NX, Mastercam, hyperMILL, PowerMill) + collision simulation
Machine cost / shop rate	$50k–250k machine; ~$45–95/hr	Moderate premium	$200k–800k+ machine; ~$75–175/hr

3. Accuracy: The Truth Behind the Tolerance Numbers

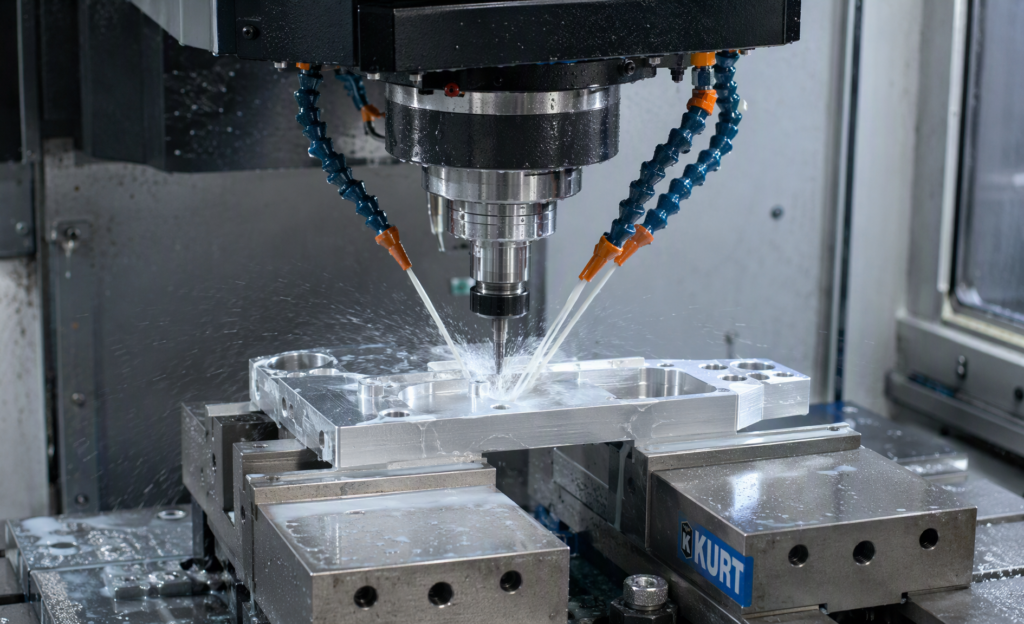

3-axis milling: one face at a time, one vise at a time — every re-clamping adds its own error

Here’s the nuance most comparisons miss: a 5-axis machine is not inherently more accurate than a 3-axis machine. Positioning accuracy comes from machine design, calibration, thermal stability, tooling, and workholding — not from the axis count. What extra axes actually eliminate is setup-related error:

• Re-clamping uncertainty. Every time a part is unclamped, rotated, and re-fixtured on a 3-axis machine, the new setup introduces 0.01–0.05 mm of repositioning uncertainty — and the errors stack. A part machined in 5 setups carries five setups’ worth of accumulated positional drift between faces.
• One coordinate system. In a single 5-axis setup, features on all five faces share one coordinate system. Feature-to-feature positional relationships — the GD&T true-position callouts that actually matter on brackets and housings — hold dramatically better.

A published real-world case makes the point: an aerospace bracket needing 6 machined faces and 4 angled bores was quoted 3-axis at 5 setups — first-article failure rate 18% from dimensional stack-up. Re-quoted 5-axis, single setup: 100% first-pass rate, 38% shorter cycle time, and 25% lower total cost despite the higher hourly rate.

Practical guidance on numbers: on a well-maintained machine with proper fixturing, 3-axis holds ±0.05–0.1 mm comfortably and ±0.025 mm with care; 5-axis holds the same absolute numbers but sustains them across faces, where 3-axis quietly loses them in re-clamping.

4. Applications: Matching the Machine to the Part

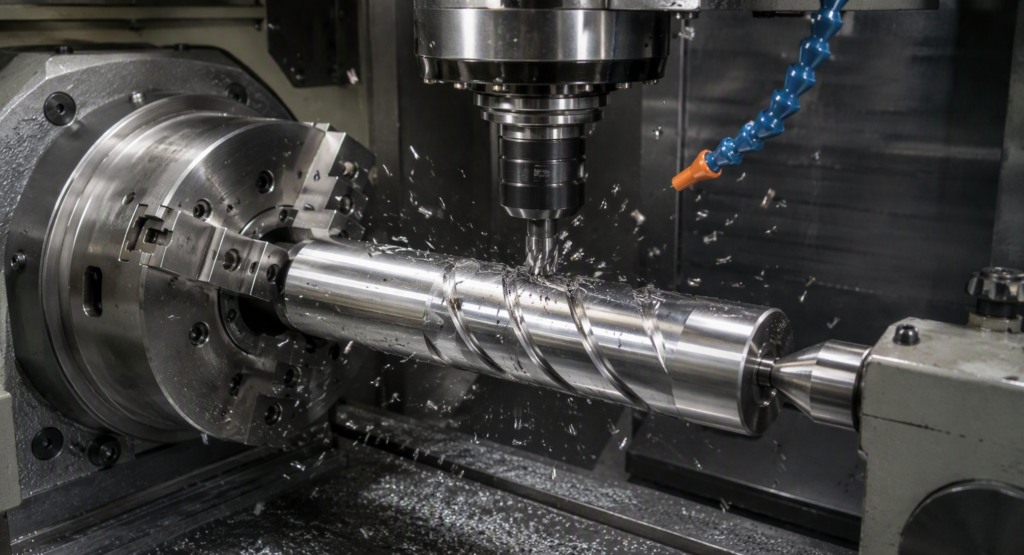

4-axis: machining flats, keyways, and cross-holes around a rotating cylinder.

3-axis is the right choice for:

• Plates, brackets, housings, mounting components, fixtures
• Pockets, holes, slots, flat surfaces, 2.5D profiles
• Simple molds, enclosures, heat sinks
• High volumes of simple parts (500+) where the low hourly rate wins
• Any part whose features are reachable from one or two orientations

4-axis is the right choice for:

• Shafts, gears, cams, and cylindrical parts needing flats, keyways, or cross-holes at angular positions
• Helical grooves and wrapped features
• Box parts needing features on 4 side faces (indexing around the rotary axis)
• Multi-face parts where a rotary indexer kills 2–3 manual setups

5-axis is the right choice for:

• Turbine blades, impellers, blisks — continuous twisted surfaces (simultaneous mode)
• Aerospace structural parts with compound angles and weight-optimized pockets
• Medical implants and bone plates with organic curvature
• Complex mold cores and cavities with deep, curved surfaces
• Parts with angled holes or undercuts on multiple faces
• Any part that would need 3+ setups on a 3-axis machine — the crossover point where 5-axis usually becomes cheaper in total

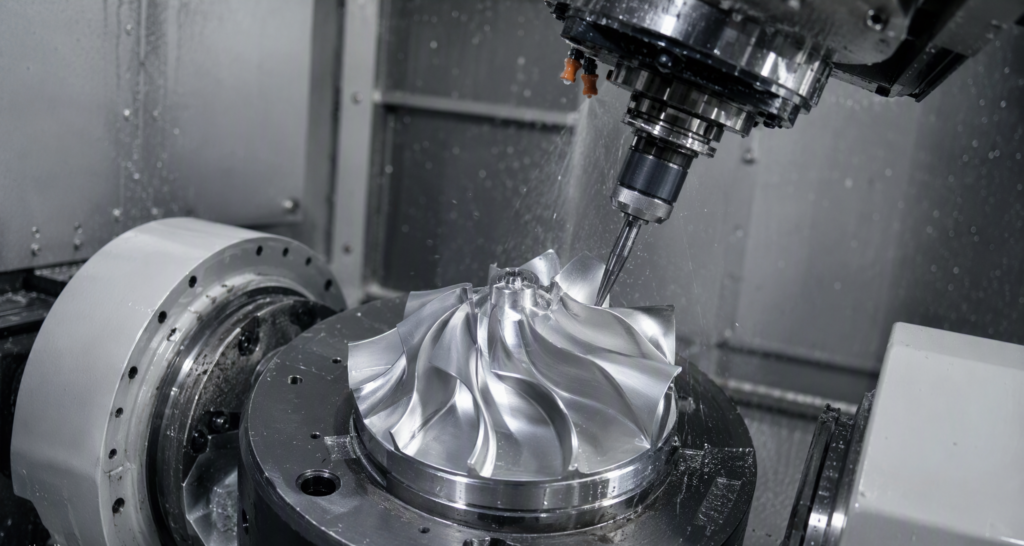

Simultaneous 5-axis machining of an impeller: the tool follows the twisted blade surfaces continuously.

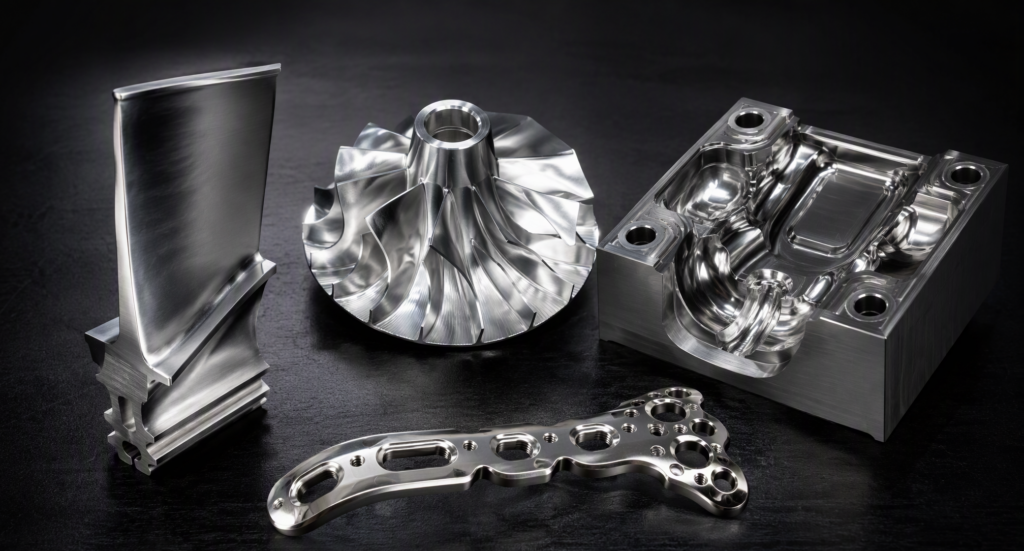

What 5-axis is for: turbine blades, impellers, medical implants, and complex mold cavities

5. Precautions: What Actually Goes Wrong

When choosing and specifying:

• 1. Don’t buy axes you don’t need. Specifying simultaneous 5-axis for a part that is really “flat faces at angles” is the most common waste in machining procurement — 3+2 positional machining does it stiffer, faster to program, and cheaper. Only continuously curved surfaces genuinely need simultaneous motion.
• 2. Don’t force complex parts onto 3-axis to save the hourly rate. Five manual setups at $80–150 of labor each, plus 18% scrap risk, routinely costs more than one 5-axis setup. Compare total cost per accepted part, never the machine rate.
• 3. Count setups at the quote stage. Rule of thumb: if a part needs more than 2 setups on 3-axis, get a 5-axis comparison quote.
• 4. Tolerance drives the decision as much as geometry. If critical features live on different faces with tight positional relationships (true position ±0.05 mm or better), single-setup machining is the safe route.

For 5-axis work specifically:

• 5. Programming is the real bottleneck. Simultaneous 5-axis toolpaths demand advanced CAM, full machine simulation, and collision checking — a gouged impeller or a crashed spindle costs far more than programming time. Ask your supplier how toolpaths are verified.
• 6. Rotary axis calibration matters. The accuracy of a 5-axis part lives or dies on the geometric calibration of the rotary axes (pivot points, squareness). Reputable shops verify with ball-bar tests and in-process probing — ask.
• 7. Workholding becomes the weak link. Single-setup machining concentrates all clamping into one fixture; it must be rigid, provide tool clearance from five directions, and not distort thin walls.
• 8. Shorter tools are a hidden benefit — use them. Tilting the part instead of reaching with a long tool improves rigidity, surface finish, and tool life; a good 5-axis programmer exploits this deliberately.

Universal:

• 9. Axis count never rescues bad workholding, dull tools, or poor thermal control — the fundamentals still decide the final micrometers.
• 10. Verify with datum-referenced inspection. Multi-face parts should come with CMM reports tying all critical features back to one datum scheme; that’s the proof the single-setup advantage was actually delivered.

6. Quick Decision Guide

Your part looks like…	Choose
A plate with pockets and holes	3-axis
Features on 2–3 sides, tolerances ≥ ±0.1 mm	3-axis (multi-setup)
Cylinder with cross-holes / flats / helical features	4-axis
Box with features on 4+ sides, moderate complexity	4-axis or 3+2
Angled holes / faces on multiple planes	3+2 positional 5-axis
Impeller, blade, organic sculpted surface	Simultaneous 5-axis
Tight feature-to-feature GD&T across faces	5-axis single setup
500+ simple parts at lowest unit cost	3-axis

The Right Machine for the Geometry

At Utely Machine, we run 3-axis, 4-axis, and 5-axis (3+2 and simultaneous) machining centers — so the recommendation follows your part, not our machine schedule. Upload your STEP file for a free DFM review and 24-hour quotation: we’ll tell you honestly which configuration your geometry and tolerances actually need, with CMM inspection reports on every critical dimension. Visit us at www.utelymachine.com.
